DP 1.4 to HDMI 2.0 Triple 4K Video Adapter
DP 1.4 to HDMI 2.0 Triple 4K Video Adapter
DP 1.4 to HDMI 2.0 Triple 4K Video Adapter
DP 1.4 to HDMI 2.0 Triple 4K Video Adapter

DP 1.4 to HDMI 2.0 Triple 4K Video Adapter

Model No.: 0977

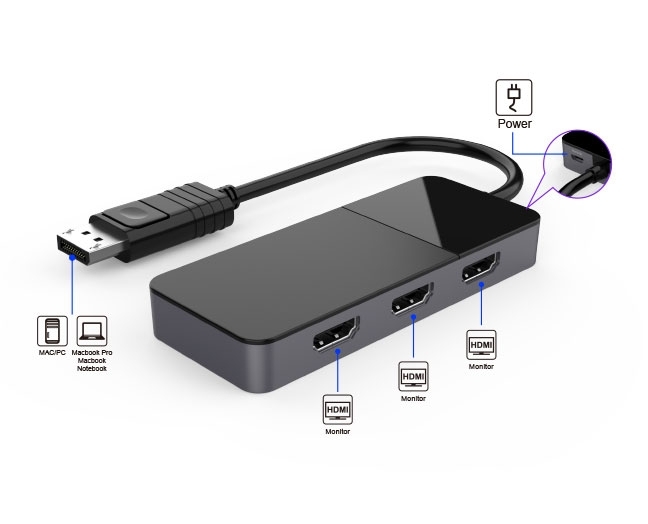

This is DP 1.4 to HDMI 2.0 Triple 4K Video Adapter with three HDMI2.0 outputs, DP interface supports the latest DP 1.4 alt mode signal input. Support both MST and SST mode, three HDMI 2.0 output ports support 4K resolution in MST (Windows OS) mode. Insert DP male with DP 1.4 (backward compatible with DP 1.2) interface computer or host device, and then use HDMI 2.0 (backward compatible with HDMI 1.4) cable to connect the monitor with HDMI interface, can support up to three simultaneous displays (including computer screens). The multi-screen display function can be applied to multi-tasking scenarios to improve work efficiency and satisfy users who need to view/operate on a large screen (if the computer itself has a small screen). NOTE: When using, Micro USB should be connected for power supply.
Inquiry Now
Overview:

Input: DP 1.4

Output: 3x HDMI 2.0


Product Features:

1. Plug and play, no additional driver/software needed;

2. When using, Micro USB should be connected for power supply;

3. HDMI maximum resolution is up to 3840x2160@60Hz;

4. Dual-display supports the highest video resolution of 3840x2160@60Hz; Triple-display supports maximum of 13840x2160@60Hz + 23840x2160@60Hz (MST);

5. Support SST in Mac OS, MST in Windows OS;

6. ABS shell, with CE FCC ROHS REACH certificates;

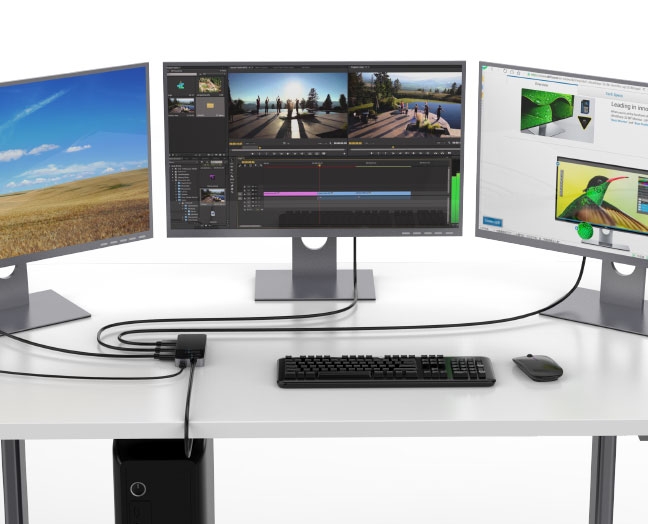

7. It can extended to three additional screens, widely used in working, gaming, advertising, entertainment.


Specs:

Input: DP 1.4

Output: 3HDMI 2.0

Certificate: ROHS.REACH

Material: ABS

Weight:

Dimension: 105 x 43 x 12.8mm


Package Contents:

1x DP 1.4 to HDMI 2.0 Triple 4K Video Adapter

1x User Manual
