DisplayPort to Dual DisplayPort MST Splitter, MST Hub
DisplayPort to Dual DisplayPort MST Splitter, MST Hub
DisplayPort to Dual DisplayPort MST Splitter, MST Hub
DisplayPort to Dual DisplayPort MST Splitter, MST Hub

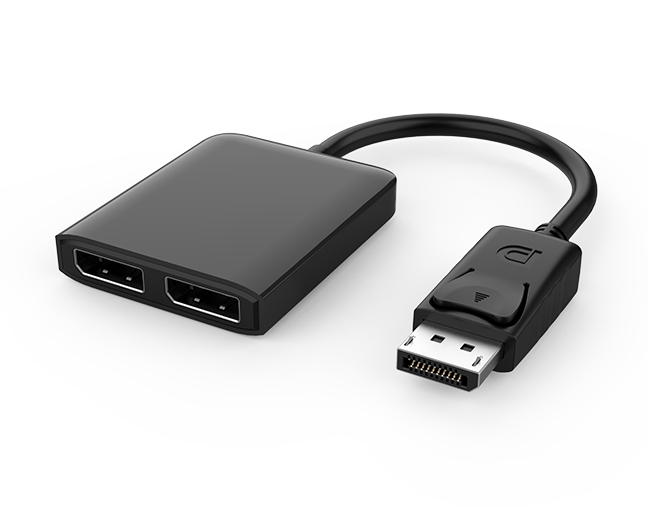

DisplayPort to Dual DisplayPort MST Splitter 8K@30Hz
Model No.: 0934

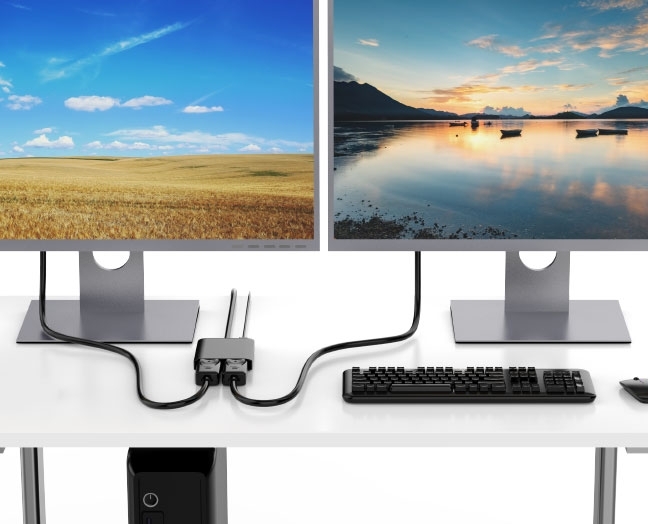

This is DisplayPort to Dual DisplayPort MST Splitter featuring the latest DP spec, supports up to single 8K@60Hz resolution and dual 4K MST function. It lets you connect two additional DP monitors to computer, which makes multitasking much easier. The MST works with any host device that supports DisplayPort and downwards. Under Windows system, it supports extended mode and mirror mode, and the monitor can display the same image or different images; Mac OS system only supports mirror mode, not extended mode, and the monitor can only display the same image.
Inquiry Now
Overview:

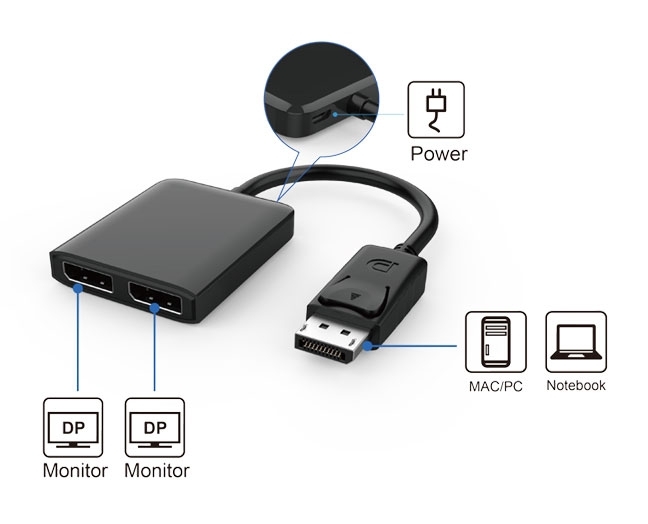

Input: DisplayPort

Output: 2x DisplayPort

(HDCP2.2, HDR10, 3D, 7.1CH)


Product Features:

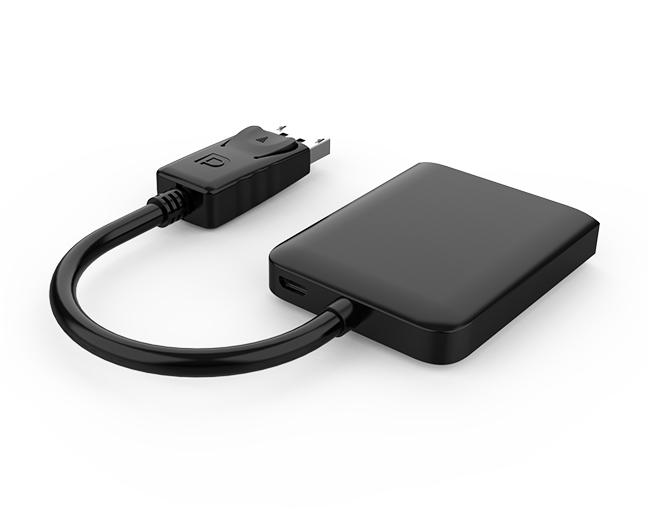

1. Equipped with a Micro USB power supply cable to ensure stable operation of the device.

2. DisplayPort output port single display support 8K@30Hz, if the graphics card support DSC mode, can be 8K@60Hz.

3. DisplayPort output port dual display support 4K@60Hz, if the graphics card support DSC mode, can be 5K@60Hz.

4. Backward compatible, Support MST function, HDCP2.2, HDR10, 3D, DSC.

5. Compatible with MacBook Pro 11.1, Dell E7240, Macbook Air4.1, Macmini7,1, Surface pro, Ordinary host computer, etc.


Specs:

Input: DisplayPort

Output: 2DisplayPort

Certificate: ROHS.REACH

Material: ABS

Length: 200mm

Dimension: 60 x 49 x 12mm


Package Contents:

1x DisplayPort to Dual DisplayPort MST Splitter

1x User Manual
