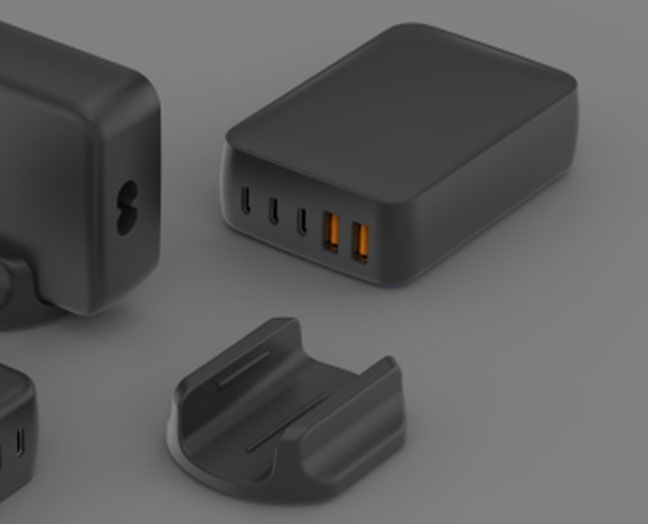

140W GaN Charger 3C+2A
S-TR-185A
This is a 140W gallium nitride charger. It has 3 * USB-C and 2 * USB-a output ports. The design uses the latest PD3.1 chip, and meets the high power requirements of multi port docking station and notebook computers. In addition, it is also suitable for mobile phones, tablets, and a variety of devices and scenarios. The exclusive safety system provides surge protection, temperature control, and other functions to ensure comprehensive protection for you and your equipment. Supports the PD3.1/PD3.0/QC3.0/SCP/FCC/AFC/Apple 2.4 full fast charging protocol.
Inquiry Now
Overview:
Input: AC 100~240V, 50/60Hz 2A max
Output:
USB-C1 (PD3.1/PD3.0) 140W: 5V/3A, 9V/3A,12V/3A,15V/3A, 20V/5A, 28V/5A
USB-C2 (PD3.0/QC3.0) 100W: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C3 (PD3.0/QC3.0) 30W: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
USB A1/A2: 5V/2.4A
C1+C2=65W+36W
C1+C3=100W+30W
C1+A1/A2=100W+12W
C2+C3=100W+30W
C3+A1/A2=30W+12W
C1+C2+C3=65W+36W +30W
C1+C2+C3+A1+A2=65W+36W+30W+12W With PFC
With 1.5M AC cable
Size: 100*68*31.5MM
