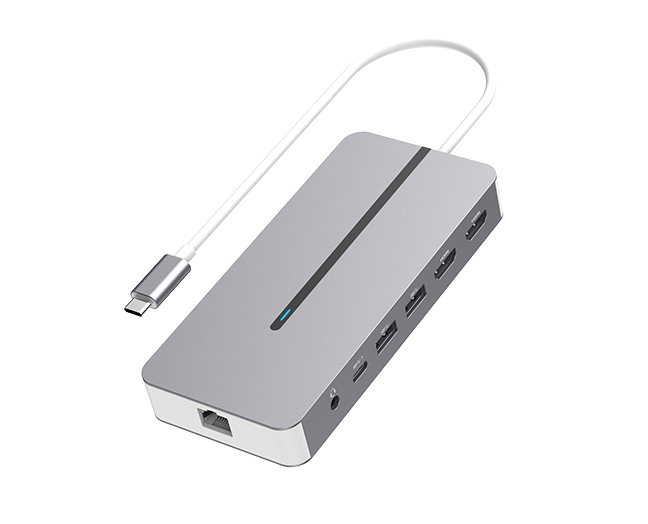

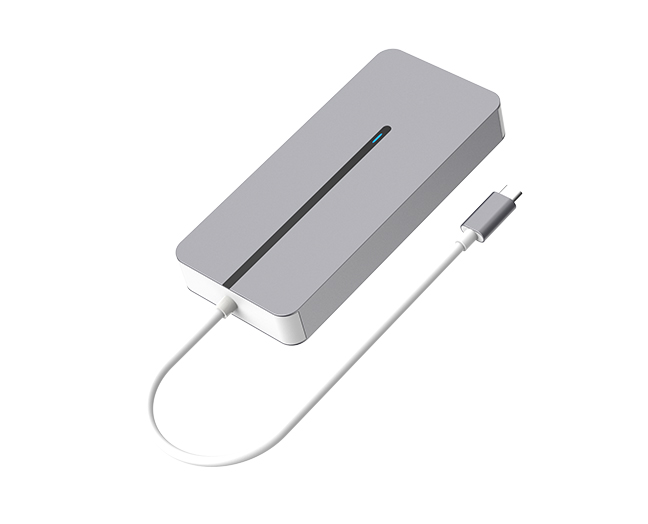

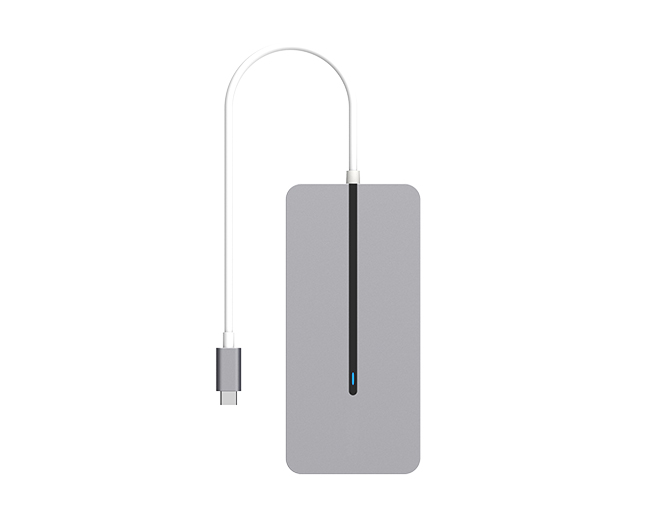

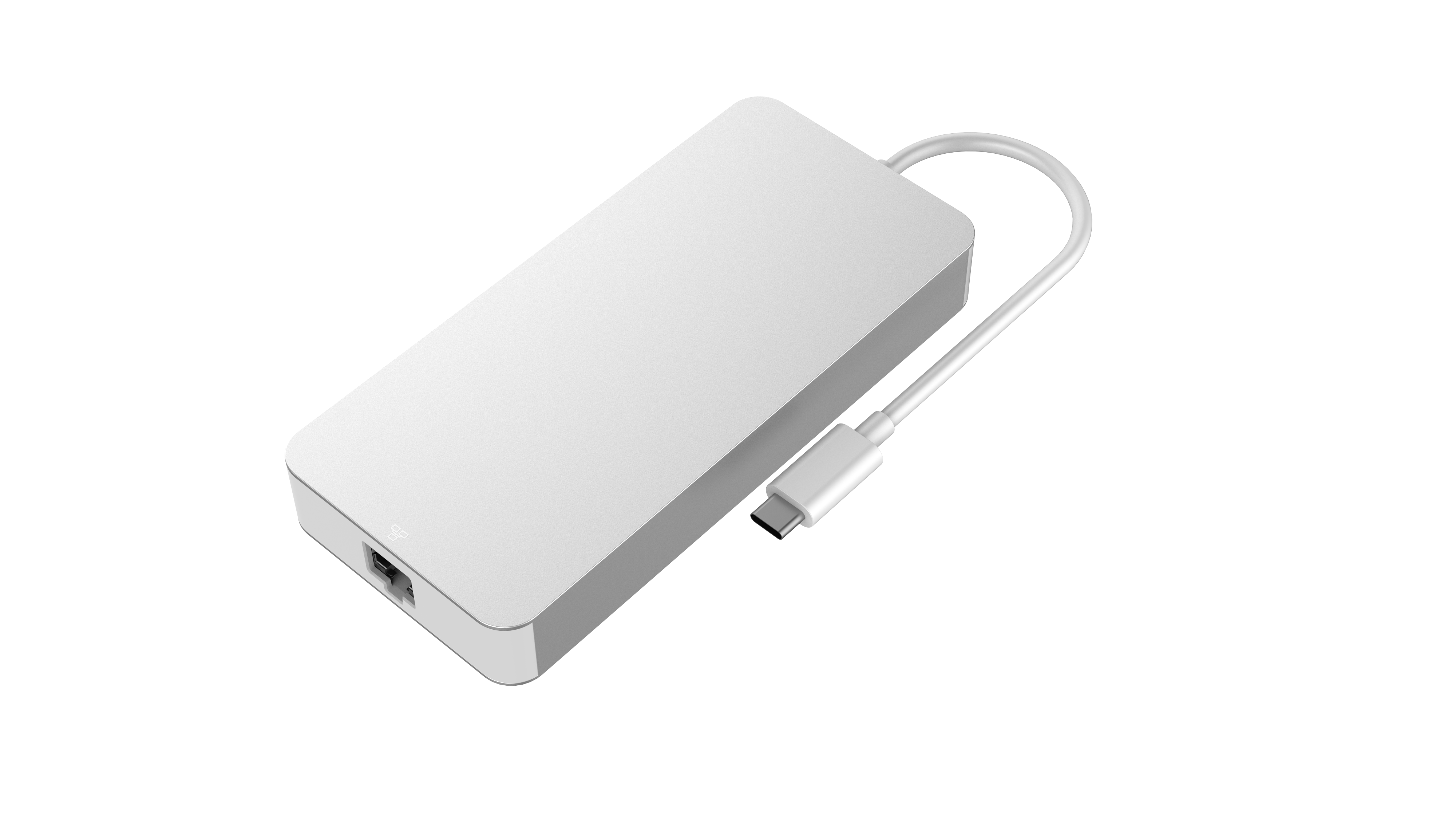

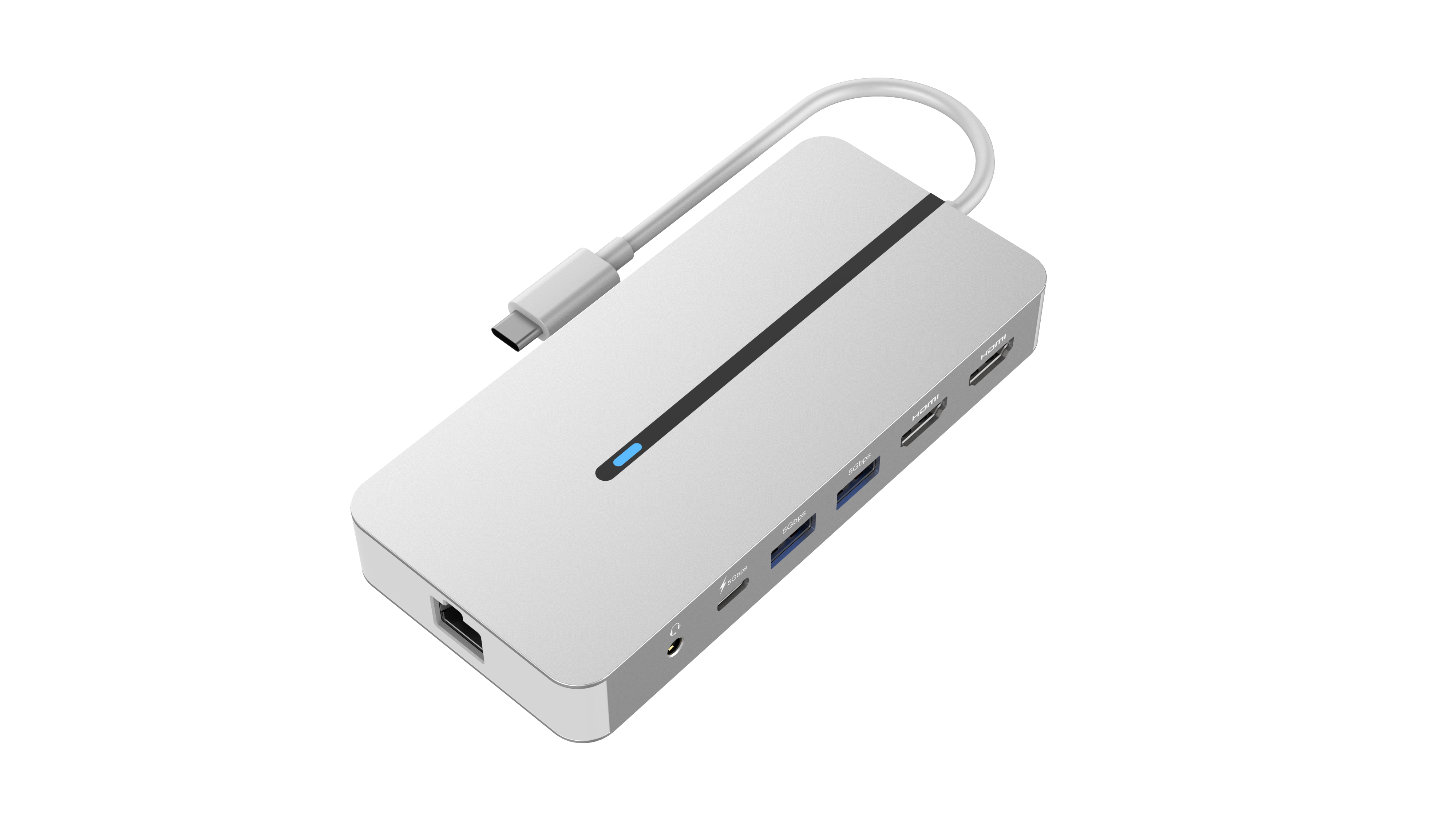

7 in 1 USB-C Dual Display Hub for MacBook M1
7 in 1 USB-C Dual Display Hub for MacBook M1
7 in 1 USB-C Dual Display Hub for MacBook M1

7 in 1 USB-C Dual Display Hub for MacBook M1

Model No.: 1145​
This is 7 in 1 USB-C Hub with dual HDMI video ports which can support different displays simutaneously. The most important performance is that it can support dual different 4K displays on M1 devices. Let M1 users still have the multi-stream productivity. Two Gen1 USB-A (5Gbps) data ports for high-speed data transmission, such as hard disk, U disk, keyboard, mouse, card reader, etc. , they support BC1.2 fast charge function and provide a maximum current of 1.5A; a gigabit network port can provide a stable network environment up to 1000MB/s.
Inquiry Now
Overview:

Input: USB-C

Output:

1x HDMI2.0: 3840*216@60Hz

1x HDMI1.4: 3840*216@30Hz

2x USB3.0-A Gen1: 5Gbps, BC1.2

1x USB-C: 5Gbps, PD3.0 (100W), BC1.2

1x RJ45: 1000MB/s

1x 3.5mm: Audio&Mic


Product Features:

1. [All-in-one USB C Hub] Connect to the latest MacBook M1 or USB-C devices with the 7 in 1 USB-C hub featuring 2 4K HDMI port (HDMI2.0 & HDMI1.4), 2 USB3.0 ports, a USB C PD3.0 charging port with power delivery, an Ethernet port and an Audio&Mic. Data transmission speed up to 5Gbps.

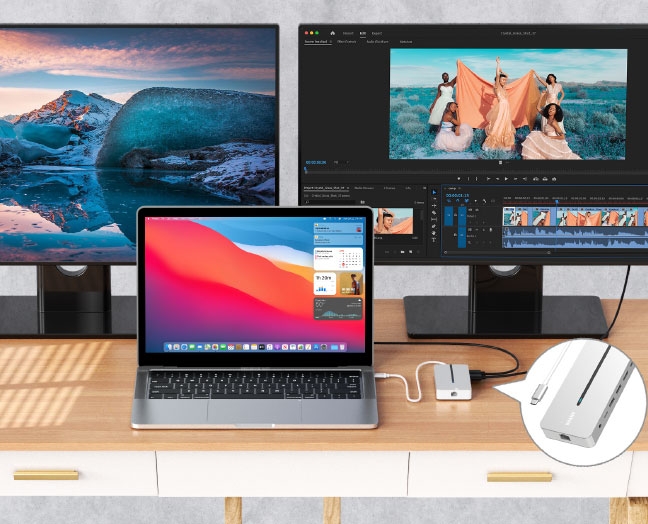

2. [Dual HDMI video ports] With dual HDMI ports, you can stream or mirror content to two displays in 4K@30Hz, or connect to a single device in stunning 4K@60Hz. It breaks through the restriction that M1 equipment only supports single display.

3. [Fast & Effortless Data Transmission] The speed rates of USB 3.0 ports can up to 5 Gbps, meeting your need for high rate and low rate devices at the same time.

4. [100W Power Delivery] USB Type C hub charges your MacBook M1 or other Type-C devices while connecting 100W power delivery port. Nowadays more and more devices and the newest USB C laptops support PD. With power delivery, a single USB-C port can give you Blazing-fast charging speed experience.

5. [RJ45 1000M Ethernet Port] Supports 1000Mbps Gigabit RJ45 Ethernet port, backwards compatible with 100Mbps/10Mbps RJ45 LAN. And there is an  LED indicators on the front to indicate whether the product is in normal working state.

6. 3.5mm port supports audio output and MIC recording, and supports 48K/ 44.1khz audio sampling rate

7. [Compatible Systems & Devices] Systems: Windows 10/8/7, Mac OS Android system; Laptops / Tablets with Type-C port.

8. LED Indicating light can show the working status of this 7 in 1 USB-C Dual Display Hub.


Caution:

1. Please confirm the monitor's resolution meets resolution requirements before use.

2. Please confirm the PIN not broken/sag/curve in the product before use.

3. Please do not splash liquid into the connector in use.

4. Please put the product in dry place.


Specs:

Input: USB-C

Output: 2x HDMI, 2x USB3.0, USB-C, RJ45, Audio&Mic

Certificate: ROHS.REACH

Material: Aluminum

Cable Length: 250mm

Dimension: 140 x 65 x 19 mm


Package Contents

1x 7 in 1 USB-C Dual Display Hub

1x User Manual


Q&A

Q: Does this hub get hot?

When the hub is fully loaded, it may reach a surface temperature of around 40°C. However, this is normal for products of this kind.
